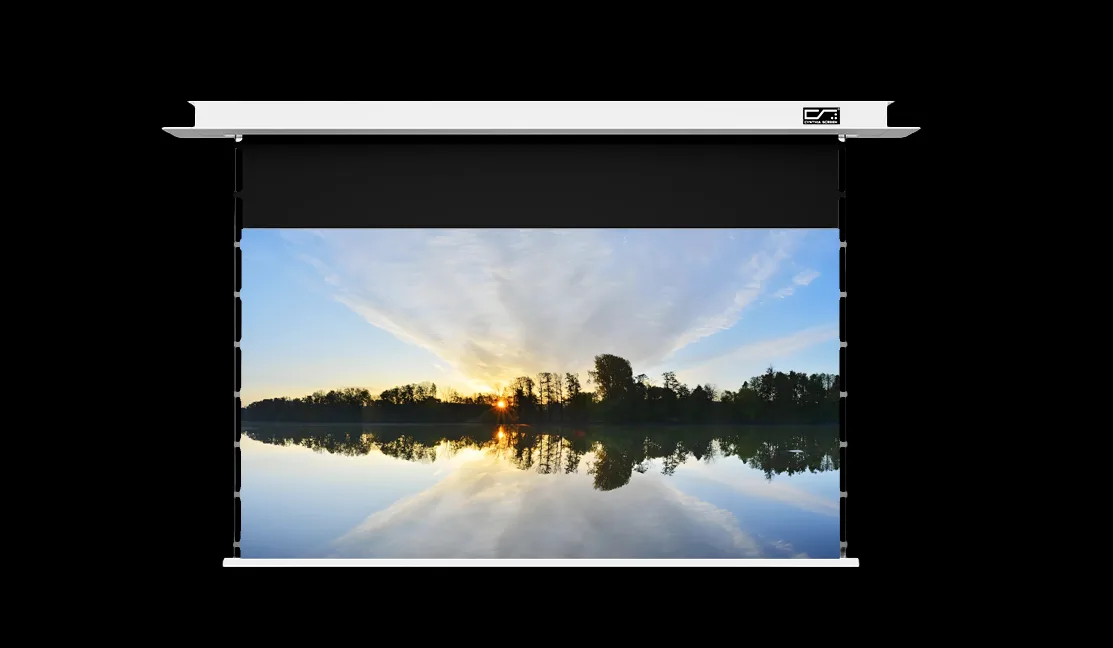

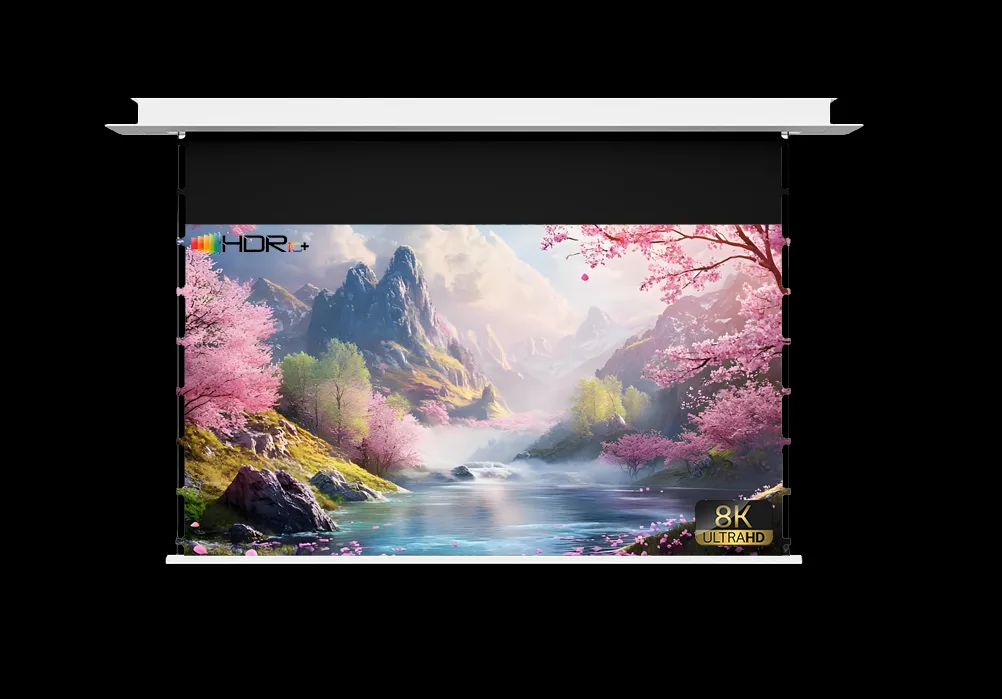

Fresnel ALR Ceiling Recessed Screen
The Future of Projection Is Hidden—Until You Press Play.
The Fresnel ALR Ceiling Recessed Screen is a premium projection solution engineered for modern home theaters and sophisticated living spaces. This innovative product represents a significant advancement in audio-visual technology and interior design integration.
Unlike conventional screens, this cutting-edge solution is designed to be discreetly housed within a suspended ceiling when not in use, descending only at the touch of a button to deliver a dramatic, cinema-quality experience.
Its revolutionary technology centers on a Fresnel optical structure integrated into the screen surface, which actively combats ambient light to ensure exceptionally bright, vivid, and sharp images even in well-lit environments.

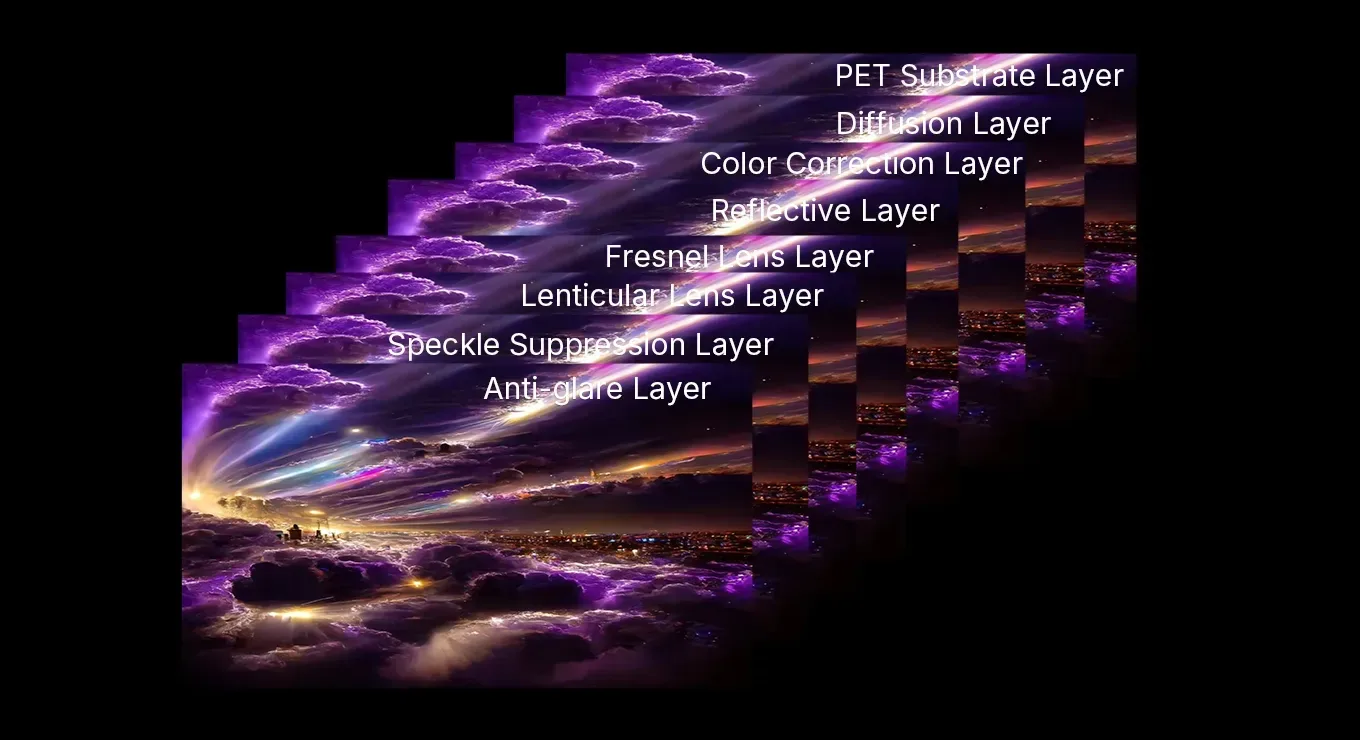

Engineered in 8 Layers.Perfected for Your Eyes.
Precision Engineered,Perfectly Layered - 8 Advanced Optical Layers for Brilliant Clarity,Dya Or Nignt
From Fresnel Lens to Anti-Glare Shield - 8 Smart Layers,Zero Compromise
How a Fresnel ALR Ceiling Recessed Screen works?
At its core is a Fresnel lens layer,composed of thousands of microscopic concentric grooves that act like tiny mirrors,efficiently reflecting the projector's light directly toward the viewer while rejecting off-axis ambient light from windows,lamps or ceiling fixtures.

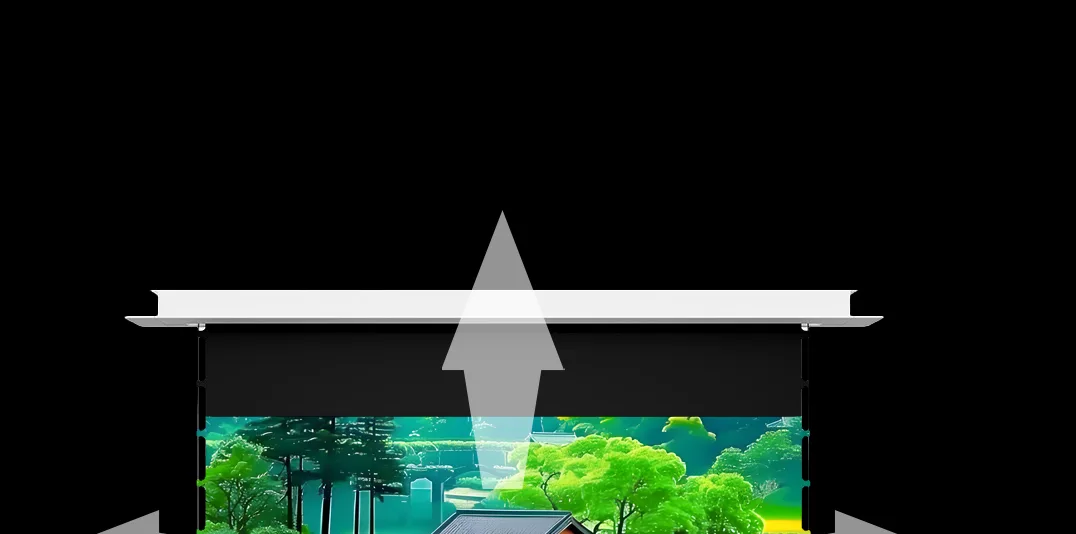

Triple-Sided Ambient Light Rejection
Our Advanced optical structure actively blocks light from above,below,and the sides,preserving contrast and color accuracy even in challenging lighting conditions.Whether it's daylight from windows,ceiling lights or lamps beside your seating area,our Fresnel ALR screen ensures a vivd,immersive picture that stays sharp,deep,and distrction-free.True cinematic performance - no blackout curtains required.
True 4K/8K Ready & Wide Color Gamut Support
Crafted with ultra-smooth, nano-coated PET composite material, the screen ensures pixel-perfect sharpness, minimal diffusion, and accurate color reproduction across Rec.709, DCI-P3, and HDR content. Ideal for pairing with standard-throw laser projectors from Epson, Sony, LG, XGIMI, and more.

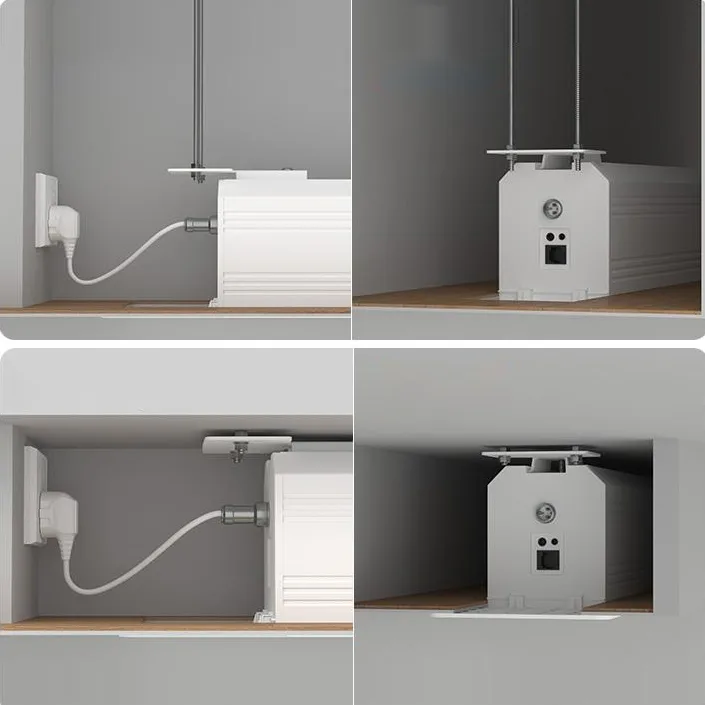

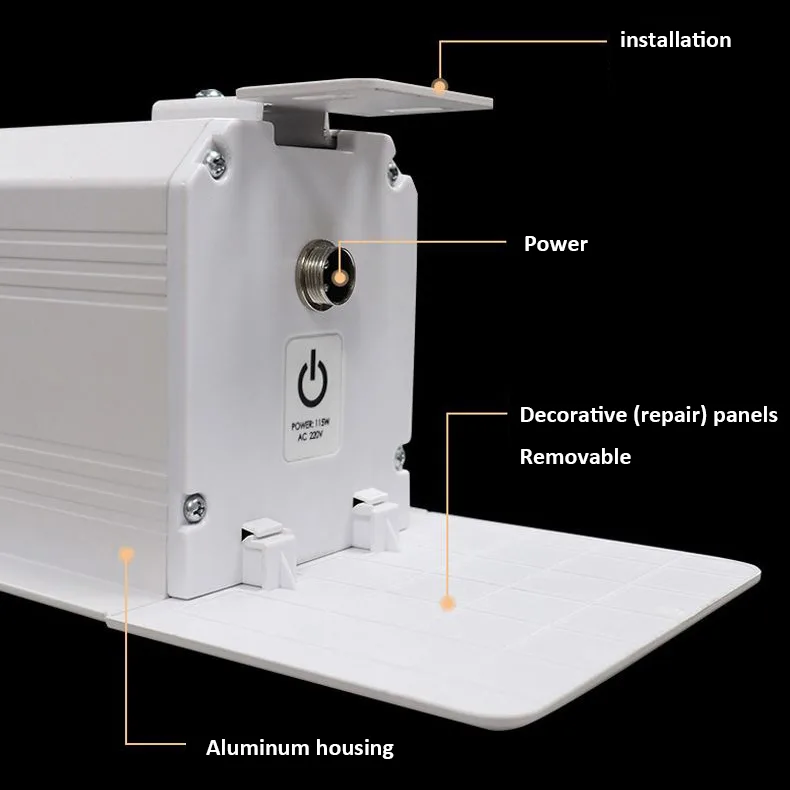

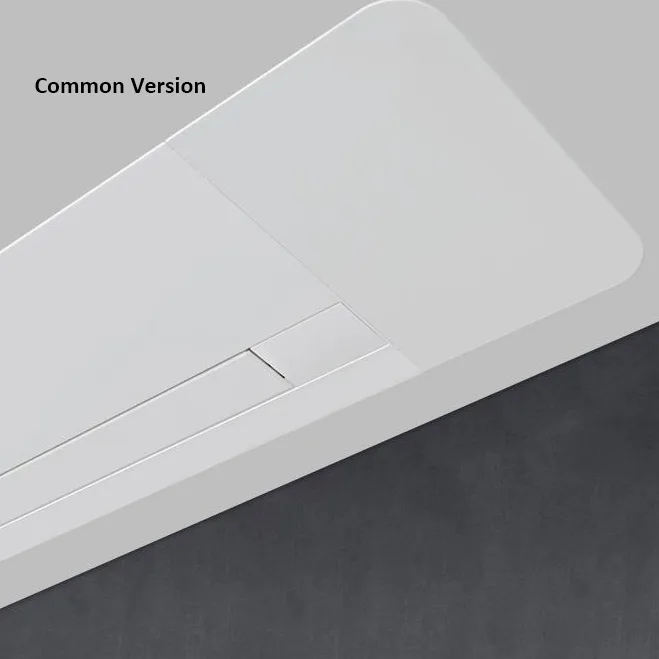

Fully Recessed, Invisible Ceiling Integration
Designed for modern minimalist interiors, the motorized housing completely disappears into the ceiling when not in use.supports flush-mount installation in drop ceilings or custom soffits, preserving your room’s aesthetic integrity. No visible frame. No clutter. Just pure cinema on demand.

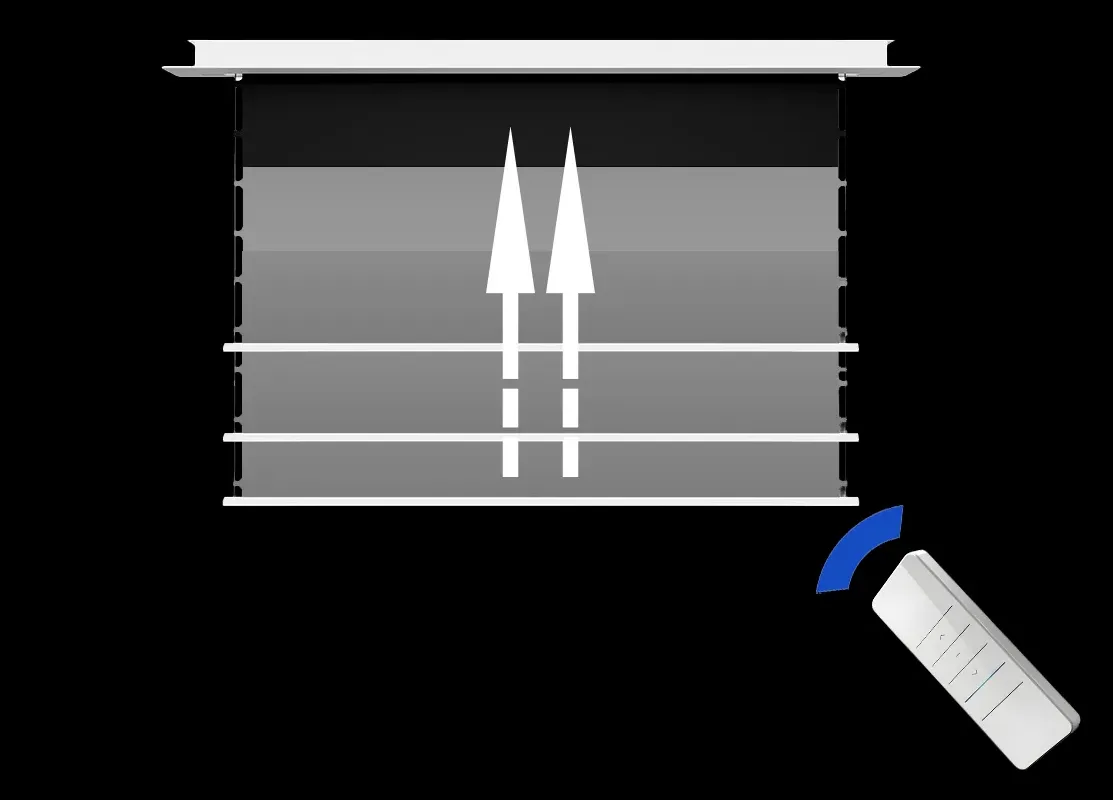

Supports RF remote, wall switch.Optionalal IR, RS-485 smart home integration. Optional auto-sync with projector power-on via trigger for true one-touch theater experience.
Engineered to Last
Powered by premium-grade branded motors—built for high torque, whisper-quiet operation, and 10,000+ hours of maintenance-free performance. Whether rising at dawn or retreating at midnight, our motor delivers smooth, reliable motion without a sound.

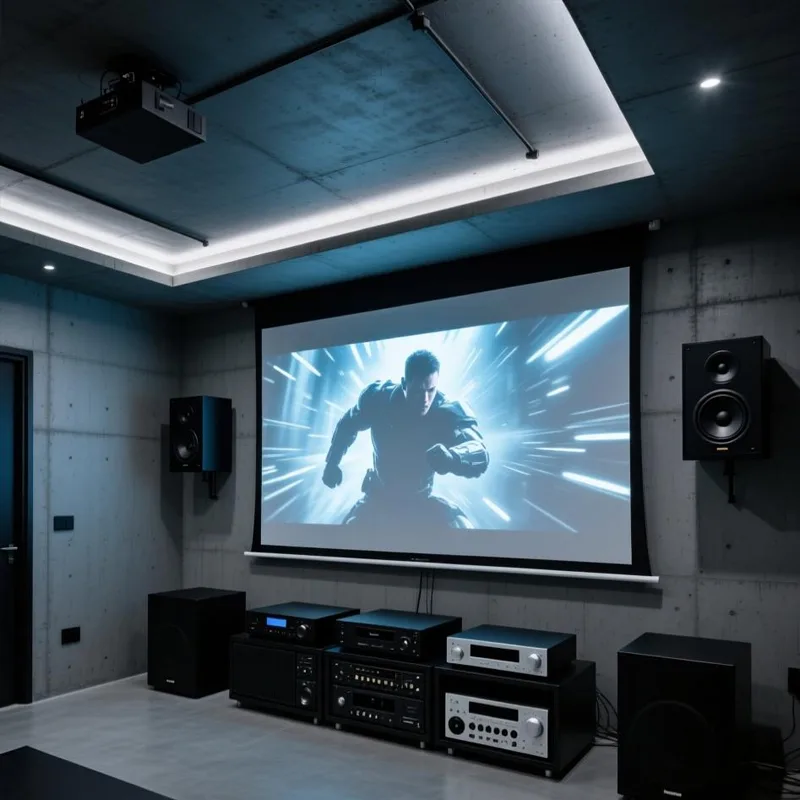

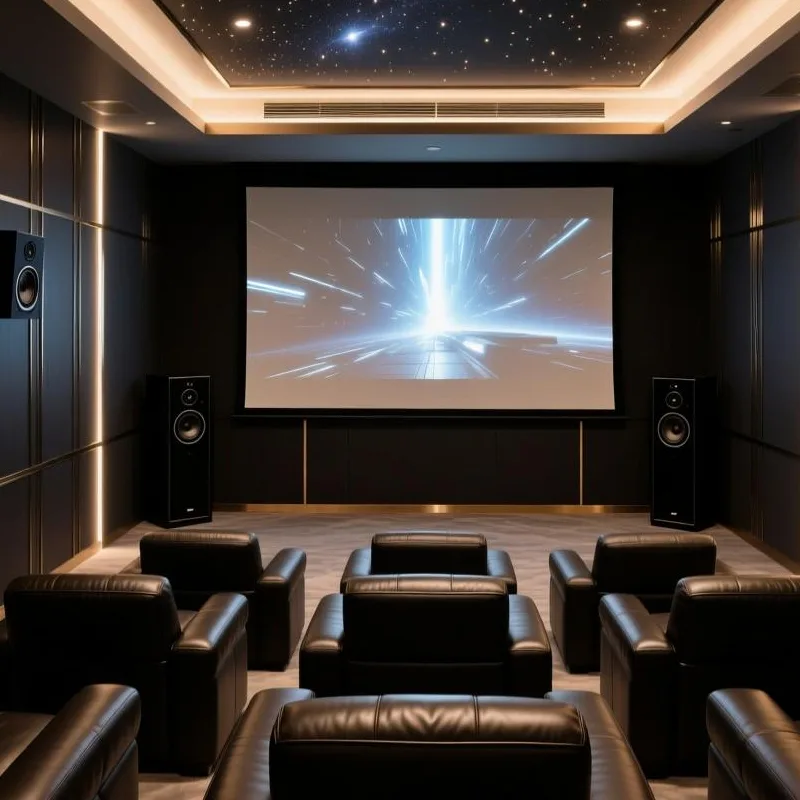

- Luxury Home Theaters – Transform your living room, basement, or dedicated media room into a private cinema.

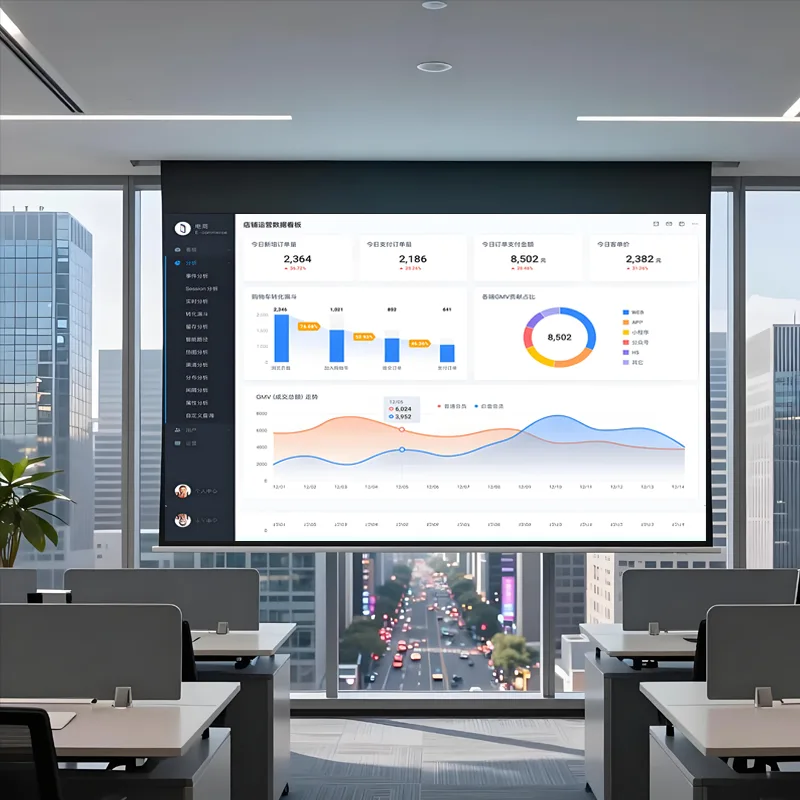

- Executive Conference Rooms – Deliver crisp presentations under office lighting with professional-grade visuals.

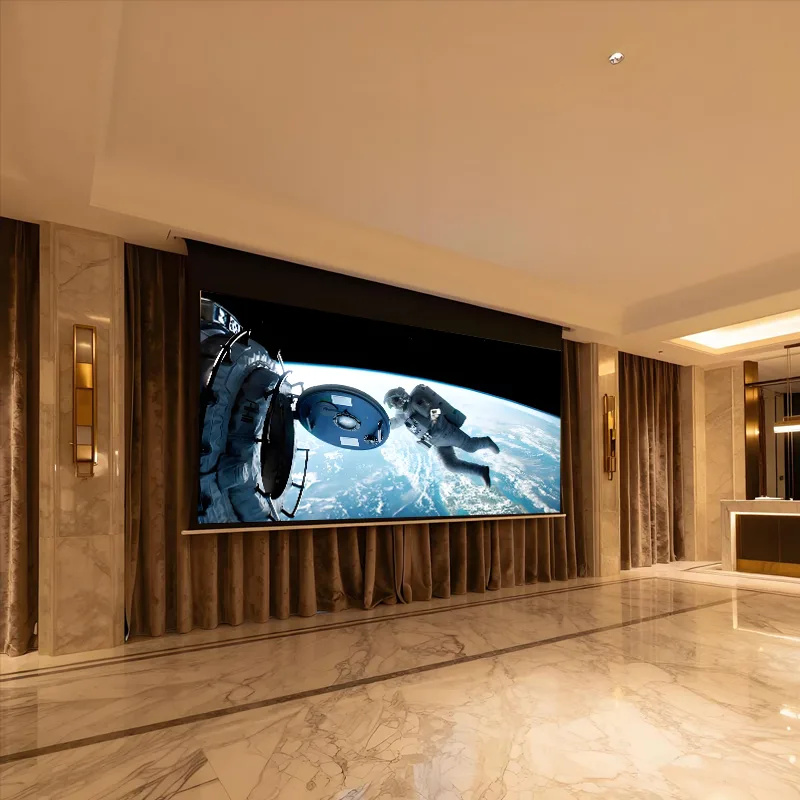

- High-End Hospitality & Yachts – Discreet, space-saving design ideal for penthouses, villas, and marine cabins.
Architectural AV Projects – Seamlessly integrate projection into interior designs where aesthetics matter as much as performance.
FAQ
Get to know everything you want to know about ALR Ceiling Recessed screen.
Facebook:Facebook
Our customer support is available Monday to Friday: 9am-5:30pm.
Or send us email:info@cynthiacn.com
Whats Fresnel ALR Screen?
- A Fresnel Ambient Light Rejecting (ALR) screen is a specialized projection screen designed to deliver high-contrast, vivid images even in well-lit environments. It achieves this through a unique optical structure based on the Fresnel lens principle.
How It Works:
The screen surface consists of microscopic concentric grooves (Fresnel microlenses) combined with a reflective layer. This structure:- Reflects light from the projector (typically coming from below or at a specific angle, as with ultra-short focus projectors) directly toward the viewer.
- Absorbs or diffuses ambient light from other directions (e.g., ceiling lights, windows), preventing it from washing out the image.

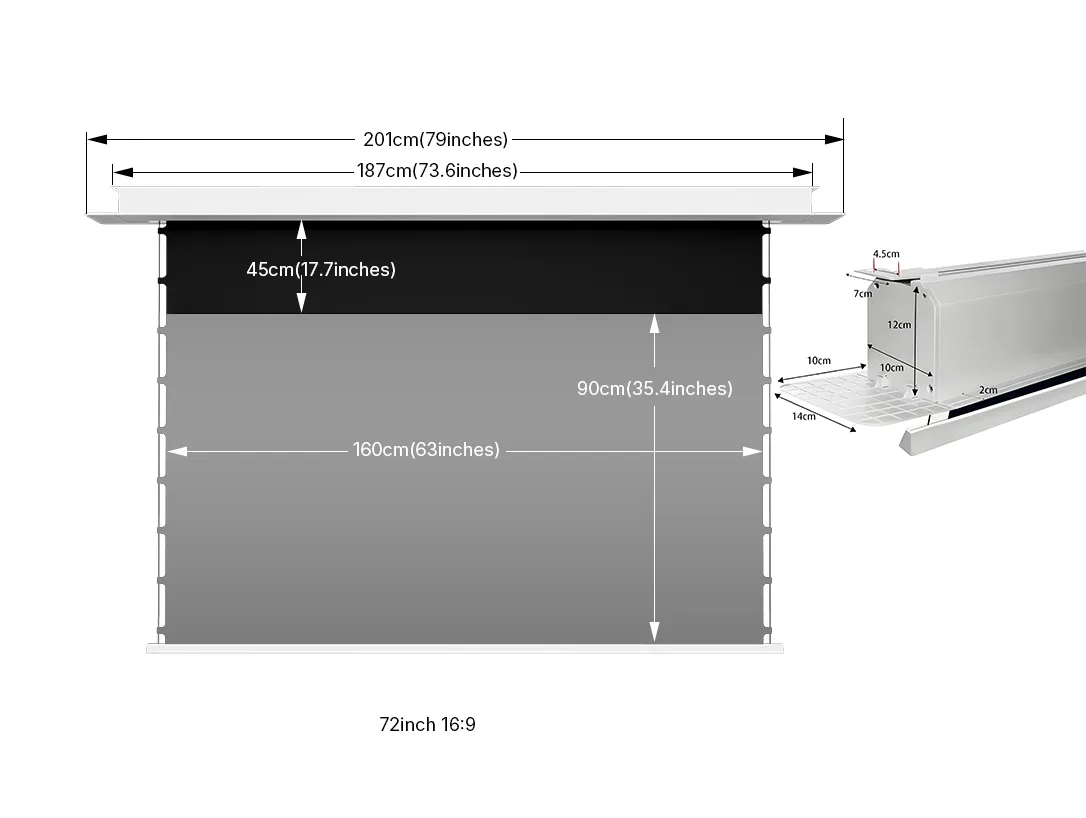

What Size does this Fresnel ALR screen have?
- We can provide Fresnel ALR Ceiling Recessed screen in size 80",84",92",100",110", 120" ,133" and 150"
Can I customize screen size?
- Yes, you can customize the size of the screen, up to a maximum of 150 inches.
What type of projector is this ALR screen used for?
- This Fresnel ambient light rejecting (ALR) screen is designed for standard-throw projectors.
What size of projection screen should I buy?
| Viewing Distance | Recommended Screen Size |
|---|---|
| 6 ft (1.8 m) | 70" – 80" |
| 8 ft (2.4 m) | 90" – 100" |
| 10 ft (3.0 m) | 110" – 120" |
| 12 ft (3.6 m) | 130" – 150" |
| 14 ft (4.3 m) | 160" – 180" |
| 16+ ft (4.9+ m) | 180" – 200"+ |
Go as large as your room and projector allow—within reason.”
Most users underestimate their ideal screen size. When in doubt, size up—you’ll rarely regret a more immersive experience.
💡 Simple Rule of Thumb:
Screen Size (inches) ≈ Viewing Distance (inches) ÷ 1.2 to 1.5
– Use ÷1.2 for a cinematic, immersive experience (THX-style).
– Use ÷1.5 for a more relaxed, TV-like setup (SMPTE-style).
🎬 Standards Explained
- SMPTE Recommendation: Screen width should fill ～30° of your field of view.
→ Ideal distance ≈ Screen Width × 1.6 - THX Certification: Recommends ≥40° field of view for true theater immersion.
→ Max distance ≈ Screen Width × 1.2 - 4K Consideration: With 4K projectors, you can sit closer without seeing pixels—enhancing detail and engagement.
Why do I need to use a projection screen? Can't I use a white wall?
- A clean, smooth, matte-finish, truly white wall in a light-controlled room can work reasonably well for casual use. However, for consistent brightness, accurate colors, better contrast, and a professional viewing experience, a dedicated projection screen is strongly recommended.Using a dedicated projection screen offers several important advantages:
Consistent Reflectivity: Projection screens are engineered with uniform surface materials that reflect light evenly, ensuring consistent brightness and color across the entire image. Walls often have texture, paint sheen variations, or subtle discolorations that can distort the picture.
Optimized Gain and Viewing Angle: Screens are designed with specific gain levels and diffusion characteristics to balance brightness and viewing angles. A white wall typically has low and unpredictable gain, which may result in a dimmer or uneven image.
Color Accuracy: High-quality screen materials maintain better color fidelity. Many white paints contain additives or tints (e.g., “off-white” or blue undertones) that can skew colors in your projected image.
Reduced Hotspots and Glare: Projection screens minimize hotspots and ambient light reflections better than most walls, especially glossy or semi-gloss paints.
Professional Appearance: A proper screen provides a clean, framed image with defined borders, enhancing the viewing experience and aesthetic.
